Intelligent Material Transport in Factory AGV Hiding Robot, Laser Navigation AGV Material Handling Transfer Cart, Pallet Trackless Shuttle Mobile AGV Robot

1 Piece
MOQ
$8,080.00(1 - 4 Pieces) $7,980.00(5 - 19 Pieces) $7,880.00(>=20 Pieces)
τιμή
Intelligent Material Transport in Factory AGV Hiding Robot, Laser Navigation AGV Material Handling Transfer Cart, Pallet Trackless Shuttle Mobile AGV Robot
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Weight (KG): 200
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Sales 2021
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor
Warranty: 1 Year
Product Name: Lurking AGV Robot, Laser Navigation AGV With Carrying Capacity 300kg
Key Words: agv material handl transfer cart robot
Application: Intelligent material transportation in factory
Moving Direction: Omnidirectional
Running speed: 0-20 M/min(Adjustable)
Power supply: Battery Powered
Capacity: 300KG. can be customized
Control Method: Programmable Controller
Our main products: AGV Handling Equipments
Type: Lurking, Jacking, Piggyback
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Περιγραφή προϊόντων

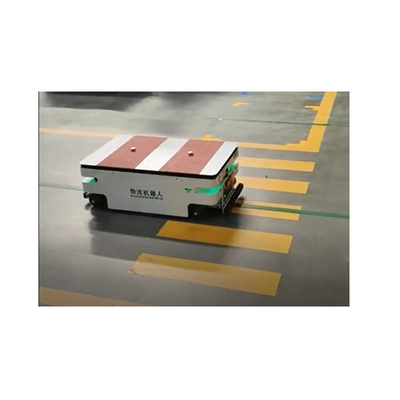

Product Overview

KXAGV-1-18
Lurking and Trackless Guiding AGV Robot, Jacking AGV

1. The AGV robot adopted laser trackless guiding technology.
2. Omnidirectional movement. Go forward, walk with forks, turn left and right, turn around in place 3. Control walking routine through preset program which can be modified according to necessary. 4. Support remote control or dispatching system control. 5. Can provide I/O interface or API interface docking. 6.OEM or ODM is acceptable, including software and hardware integration according to customer's requirement.
PRODUCT SPECIFICATIONS
Item
Value / Specification
Product Name
Lurking and Trackless Guiding AGV Robot, Jacking AGV
Jacking Height
50mm
Navigation mode
Laser navigation （Magnetic stripe or QR code navigation for option）
Number of sites & route length
Can be customized.
Wheels
6 wheels. Among them, four are universal driven wheels, and the other two are driving wheels (using solid rubber tires)
Running direction
Omnidirectional movement. Go forward, walk with forks, turn left and right, turn around in place
Running speed
10~35 m/min (9 speeds adjustable)
Gradeability
Max 3°. Can be customized
Loading mode
Piggyback type
Load capacity
Max 300kg. Can be customized
Battery
High-quality maintenance-free power lithium battery
Power display
Analog quantity display according to percentage example


Charging method
Manual charging via power adapter.
Input: AC 220 V (Can be customized according to different countries or regions)
Output: DC 24/3 A
Working Current: 0.8 A
Safety device
Manual emergency button, Infrared obstacle avoidance, mechanical collision avoidance
Safety sensing distance
No more than 500mm, emergency braking ±20mm (can be customized)
Braking method
High-performance electronic brake device
Braking accuracy
±2CM (Can be customized )
Application
Handling in Assembly line or Warehouses
Work time
Max 8hrs
HMI
Touch screen
Work environment
Indoor. Temperature: 0～45℃, relative humidity: 20%～80%

Packaging
Including：
Wooden box*1
KXAGV-1-18 AGV *1
Power adapter with cable *1
User manual *1
Note:
The quotation on the web page does not include the costs involved in going to the customer's site to install, such as visa fees, travel expenses, hotel expenses, etc.
Since most application scenarios are different, please contact our sales managers before placing order. The sales managers will provide the accurate and discount quotations according to the your specific requirements.
Thank you!
FEATURES AT A GLANCE
Multi Safety Devices
Program control
Easy Maintenance
Wide Range of Applications
Turnover box can be installed on the chassis
Product packaging
Packaging including：
Including： Wooden box*1 KXAGV-1-18 AGV *1 Power adapter with cable *1 User manual *1 AGV size: main body L680*W480*H300mm Net weight: about 130kg (including roller ) Wooden box size: L720*W520*H340mm Gross weight: about 140kg
SIMILAR PRODUCTS
During the past ten years, more than 160 models of AGV products have been successfully developed, with navigation methods such as magnetic stripe navigation, two-dimensional code navigation and laser navigation.
The material carrying method covers various models such as piggyback type, towing type, jacking type, forklift type, traction type, roller type, conveyor type, holding type, latent type and lifting type, etc,.
Products have been applying in dozens of industries, such as automobiles, home appliances, clothing, food, machinery molds, and new energy, etc,.
Successful Project
Project in Thailand
Project in Malaysia
Project in Philippines
FAQ
Q1:Are you factory manufacturer or trade company? A: Our manufacturer for smart electronics products nearly 10 years. OEM & ODM are available. Q2: Can I get a sample before order in bulk? A: Yes, support sample order. Q3: What's the MOQ? A: The MOQ of the products is 1~10 sets, it depends on the specific product. Q4:What is the lead time? A:Generally 5-30 days(based on quantity and whether you need your LOGO),and most models have in stock. Q5:Is it all right to make customer's Logo? A:Sure,customer's logo can be embossed,debossed ,screen printed, etc. It depends on the order quantity. Q6:Where is your loading port? A:Shenzhen Port, In China. Q7:What are your payments terms? A: T/T, PayPal, Western Union or by Alibaba Trade Assurance Q8: How about the warranty? A: 1 Year
